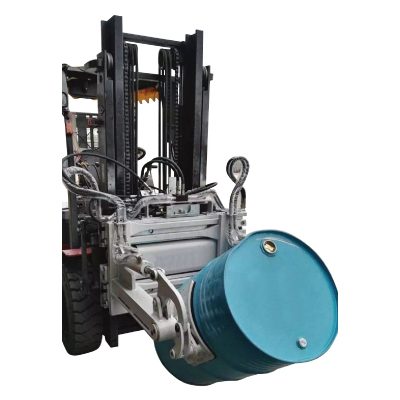

Forklfit Attachment Steel White 55 Gallon Forklift Drum Clamp

specifikationer

Fork lift truck attachment oil drum clamps
Handle two drums
High efficiency and economy
MOQ:1 unit
CE ISO TUV

Fork lift truck attachment oil drum clamps
Functions&Applications:

Handle two or four drums during transportion,ensure the safe and reliable clamping,improve the handling efficiency.
Widely used in the bottled cargo stacking operations,such as oil,petrochemical and food industries,etc.

Funktioner:

Superior arm-side bearing for extended service life

Regenerative hydraulic valve for optimal arm speed with less energy consumption

Excellent driver visibility and secure operation

Handling two or four drums per load

Special rubber contact pads

Packaging & Delivery

Packaging Details:	Packing With Pallet,Loaded Into Container,16 Units /20'CTN As the clients' requirement
Delivery Detail:	30-40days after order confirm(As per customer's order quantity)

Muligheder:

l Brugerdefinerede åbningsområder

l Brugerdefineret pude størrelse

l Der findes forskellige monteringsklasser

l Indlæs ryglæn

Kapacitet@ Load Center(kg@mm)	Katalog Ordre nummer.	Montering klasse	Montering Vinkel	Åbning Range O (Mm)	Ramme Width C (Mm)	Krog Spread E (Mm)	samlet set Height E (Mm)	Lodret Center for GravityVCG (Mm)	Weig ht (Kg)	Effektiv Tykkelse ET (Mm)	Horizo n tal Centrum af Tyngdekraft HCG (Mm)
sideshifting drum clamp
1400@500	BTC14D-B001	II	0 °	395-1545	940	890	645	210	285	145	100
1400@500	BTC14D-B002	II	0 °	485-1600	865	760	620	210	270	140	107
1900@500	BTC19D-B001	II	0 °	520-1750	940	760	620	220	295	145	104

Model NO.: BTC14D-B001
Overfladebehandling: Bagemaling
Standard: Standard
Capacity: 1400kg
Monteringsklasse: II
Weight Available: 285kg
Hook Spread: 890mm
Effective Thickness: 145mm
Specifikation: CE
HS-kode: 8427209000

Materiale: Carbon Steel
Tilpasset: Tilpasset
Item: Drum Clamp
Farve: hvid og orange
Åbningsområde: 395-1545mm
Rammebredde: 940 mm
Overall Height: 645mm
Varemærke: LH
Oprindelse: Kina
